1. Product Introduction

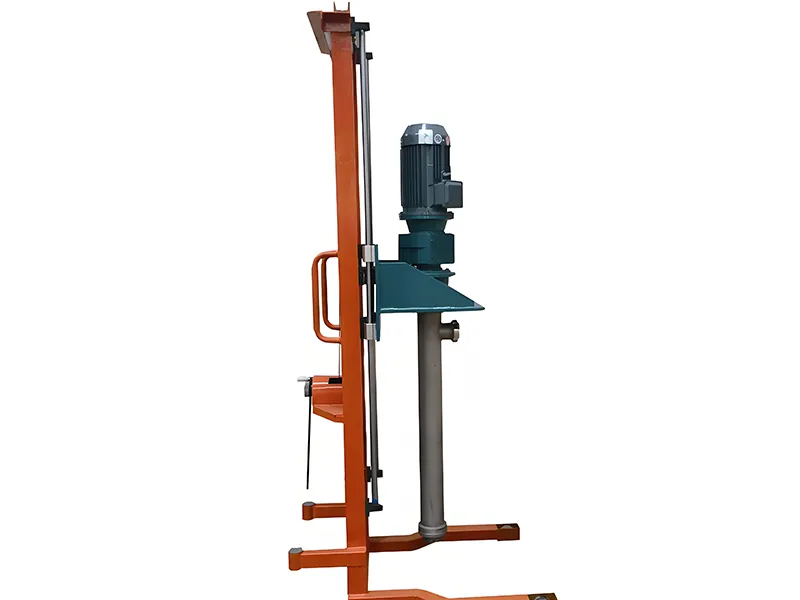

The Vertical Portable Screw Pump is a compact, efficient, and mobile Progressive cavity pump designed for transferring viscous, abrasive, or shear-sensitive materials across a wide range of industries. Unlike traditional stationary pumps, this model features a vertical design with a portable structure, allowing users to easily move and operate it wherever fluid transfer is required — from storage tanks to mixing vessels, trucks, or processing lines.

This pump operates on the progressive cavity principle, in which a single helical rotor rotates within a double helical elastomer stator. As the rotor turns, sealed cavities form and progress continuously from the suction side to the discharge side, ensuring a smooth, pulsation-free, and low-shear flow. This makes it ideal for handling delicate or sensitive materials such as honey, cream, paint, sludge, glue, and food pastes.

Constructed with stainless steel (304 or 316L) for the wetted parts, the Vertical Portable Screw Pump meets sanitary and industrial standards, making it suitable for use in food, pharmaceutical, cosmetic, and chemical industries. The portable frame with built-in handles or wheels allows easy relocation and quick connection to multiple process points, significantly improving productivity and flexibility.

Equipped with a frequency-controlled motor, the pump can easily adjust flow rate and pressure according to process needs. It offers quiet operation, easy maintenance, and long service life, making it an essential solution for mobile fluid transfer systems, temporary installations, or maintenance bypass lines.

2. Product Features and Advantages

1. Portable Design – Lightweight and equipped with wheels or handles for easy relocation between workstations.

2. Vertical Structure – Saves floor space and integrates easily with tanks and reactors.

3. Smooth, Pulsation-Free Flow – Ideal for handling viscous and shear-sensitive materials.

4. Sanitary and Durable Construction – Made of stainless steel 304/316L for corrosion resistance and hygiene.

5. Flexible Drive Options – Compatible with electric, variable frequency (VFD), or pneumatic motors.

6. Quick Disassembly and Cleaning – Designed for easy cleaning and maintenance, including optional CIP (Clean-In-Place) systems.

7. Energy Efficient and Quiet – Progressive cavity technology ensures low energy use and minimal vibration.

8. Customizable Flow and Pressure – Adjustable rotor and stator configurations to meet specific fluid transfer requirements.

9. Wide Viscosity Range – Handles everything from water-like fluids to thick, sticky substances.

10. Optional Accessories – Available with control panels, speed regulators, flexible hoses, and mobile frames.

3. Technical Parameters

4. Application Scenarios

The Vertical Portable Screw Pump is highly adaptable, serving multiple industries requiring hygienic, flexible, and efficient fluid transfer.

1. Food and Beverage Industry

Used for handling a variety of viscous and particulate materials such as:

• Honey, syrup, molasses, and chocolate

• Tomato paste, sauces, and jams

• Yogurt, cream, and edible oils

The pump’s gentle action preserves product texture and taste, while its sanitary construction ensures full hygiene compliance.

2. Pharmaceutical and Biotech

Ideal for transporting:

• Liquid medicines, gels, and ointments

• Culture media and fermentation broths

• Creams, suspensions, and syrups

Its portable frame allows it to move between production areas, making it perfect for multi-batch or small-scale production setups.

3. Cosmetic and Personal Care

Used for transferring:

• Lotions, creams, and gels

• Shampoos, conditioners, and serums

• Perfume bases and emulsions

The pump minimizes foaming and shear stress, maintaining product quality and consistency.

4. Chemical and Industrial Applications

Handles aggressive or viscous fluids such as:

• Resins, adhesives, lubricants, and paints

• Polymers, slurries, or sealants

• Acidic and alkaline chemicals (with corrosion-resistant materials)

Its mobile and vertical design is especially suitable for flexible plant operations and maintenance use.

5. Environmental and Waste Treatment

Used for:

• Sludge transfer, flocculant dosing, or wastewater treatment

• Pumping thickened slurry from tanks or filters

• Mobile maintenance and emergency fluid removal

The pump’s portability allows it to be deployed quickly in different treatment stations.

6. Construction and Material Handling

Transfers:

• Cement slurry, grout, and mortar mixtures

• Coatings and waterproofing materials

• Asphalt emulsions and resin additives

5. Operation Instructions

Installation

1. Place the pump on a stable and level surface or secure it on the mobile frame.

2. Ensure the power supply and connections comply with local electrical standards.

3. Connect inlet and outlet hoses firmly using compatible fittings.

4. Check rotor and stator alignment before operation.

5. Avoid dry running by priming the pump with liquid before startup.

Operation

1. Start the pump at low speed to allow priming.

2. Adjust flow and pressure using VFD speed control.

3. Monitor the pressure gauge and ensure normal temperature operation.

4. Avoid sudden starts or stops to reduce wear on the stator and rotor.

5. After each use, flush the pump with clean water or appropriate cleaning fluid.

Cleaning and Maintenance

1. Disconnect power before cleaning or servicing.

2. Clean thoroughly after every batch, especially with food or pharmaceutical fluids.

3. Inspect seals, bearings, and couplings regularly.

4. Lubricate as recommended by the motor manufacturer.

5. Store in a clean, dry place when not in use.

6. Replace worn stators or rotors immediately to maintain efficiency

6. Advantages of the Vertical Portable Screw Pump

1. Portability – Can be easily moved for multi-point usage in a plant or facility.

2. Vertical Space Saving – Compact design fits into small or confined areas.

3. Versatility – Capable of handling a wide variety of fluids across industries.

4. Ease of Cleaning – Designed for quick disassembly and cleaning with minimal tools.

5. Reduced Product Waste – Smooth flow ensures minimal residue in pipelines.

6. Energy Efficiency – Operates efficiently with low noise and low shear.

7. Low Maintenance Costs – Durable components extend service life and reduce downtime.

8. Hygienic Design – Ideal for food, cosmetic, and pharmaceutical production.

9. Customizable Performance – Flow rate, pressure, and material configuration adjustable for user requirements.

7. Common Problems and Troubleshooting

8. Safety Guidelines

• Do not operate the pump dry; always ensure fluid is present in the chamber.

• Avoid pumping highly abrasive materials without proper lining.

• Follow electrical safety procedures during maintenance.

• Use personal protective equipment (PPE) when handling chemicals.

• For food or pharmaceutical applications, ensure all materials are FDA and GMP compliant.

• Secure the pump during transport to prevent damage or tipping.

9. Technical Options and Customization

1. Material Options

• 304 / 316L Stainless Steel: For food-grade and pharmaceutical applications

• Carbon Steel: For general industrial use

• Hastelloy or Duplex Steel: For highly corrosive fluids

2. Stator Options

• NBR (Nitrile Rubber): For oils, water, and neutral fluids

• EPDM: For acidic or alkaline fluids

• FKM (Viton): For high-temperature or solvent applications

3. Seal Types

• Mechanical Seal: Leak-proof for sanitary applications

• Packing Seal: Economical for non-hygienic industrial use

4. Drive System

• Electric Motor: Standard industrial drive

• Variable Frequency Drive (VFD): Adjustable speed and flow control

• Pneumatic Motor: Ideal for explosive or hazardous environments

5. Optional Accessories

• Flexible suction hoses

• Mobile trolley frame

• Control box and flow meter

• Cleaning-in-place (CIP) system integration

10. Frequently Asked Questions (FAQs)

1. What materials can the Vertical Portable Screw Pump handle?

It can handle a wide range of materials — from water-like fluids to highly viscous or abrasive substances such as honey, paste, sludge, oil, or glue.

2. Is the pump suitable for food or pharmaceutical applications?

Yes. The pump is available in 316L stainless steel and can use FDA-approved elastomers for sanitary operations.

3. Can the pump be operated continuously?

Yes, the pump is suitable for continuous or intermittent operation under normal working conditions.

4. How do I clean the pump after use?

For sanitary use, employ CIP (Clean-In-Place) systems or manually flush with warm water or an approved cleaning agent.

5. Can I control the flow rate?

Yes. The flow rate can be easily adjusted using a Variable Frequency Drive (VFD).

6. How portable is the unit?

The pump is mounted on a wheeled frame or lightweight stand, making it easy to move between tanks or processing stations.

7. Does it require lubrication?

Only the drive unit or bearing section requires periodic lubrication; the pump chamber itself remains self-lubricating when in operation.

8. What is the maximum temperature the pump can handle?

Standard configuration supports up to 120°C, and special designs can handle higher temperatures.

11. Conclusion

The Vertical Portable Screw Pump is a versatile, space-saving, and mobile pumping solution designed for transferring viscous and sensitive materials with high precision and hygiene. Its vertical configuration allows integration in confined spaces, while the portable design offers unmatched flexibility for multiple process points.

Built with robust stainless steel construction, low-shear operation, and easy-clean design, it ensures long service life, reduced maintenance, and superior flow stability. Whether in the food, pharmaceutical, cosmetic, or chemical industry, this pump provides a safe, reliable, and efficient method for transferring complex fluids.

By combining mobility, durability, and sanitary performance, the Vertical Portable Screw Pump becomes an indispensable tool for any modern production facility aiming to enhance operational efficiency and process flexibility.
