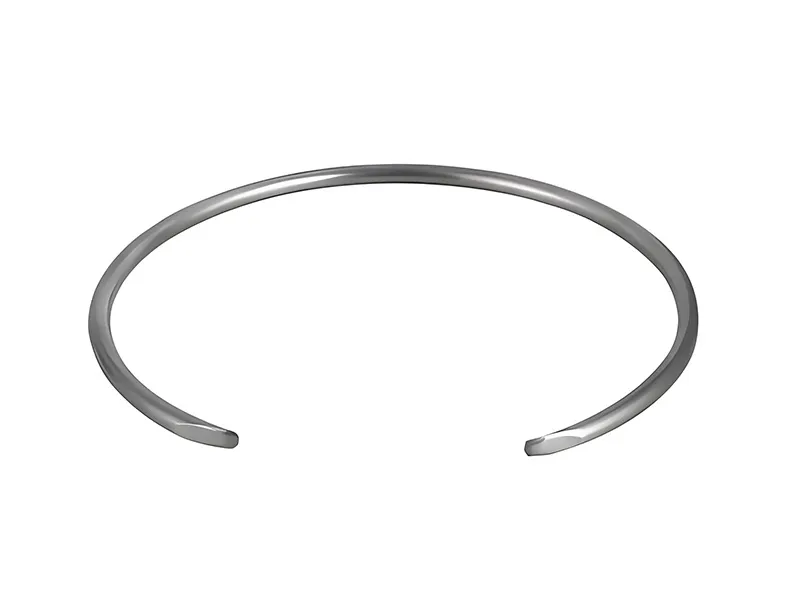

The Screw Pump Wire Retaining Ring is a precision-engineered component designed to secure key parts of a progressive cavity (screw) pump assembly. It plays a vital role in maintaining the rotor and stator alignment, ensuring smooth rotation and minimizing mechanical play within the pump structure.
Made from high-strength alloy steel or stainless steel, the retaining ring offers excellent mechanical strength, corrosion resistance, and dimensional stability under harsh industrial environments. It is used primarily in oil processing plants, wastewater treatment systems, food slurry transfer units, chemical dosing systems, and industrial sludge conveying operations where reliability and continuous operation are critical.
In a screw pump, the retaining ring (sometimes called a circlip, locking wire, or retaining spring) is installed in the headstock or coupling shaft section. It prevents axial movement of the rotor or drive shaft, keeping the mechanical seal, bearings, and coupling in fixed alignment. Without a properly functioning wire retaining ring, the pump may experience leakage, misalignment, or excessive wear on internal components.
The design of a screw pump wire retaining ring emphasizes constant elasticity, tight fit tolerance, and ease of assembly/disassembly. The ring is precision-ground to match the pump housing groove, ensuring reliable locking and long service life even under variable torque loads.
High-Strength Material: Manufactured from heat-treated spring steel, 17-4PH stainless steel, or AISI 304/316 stainless alloys, ensuring resilience and long-term fatigue resistance.
Corrosion & Chemical Resistance: Suitable for operation in environments exposed to acids, alkalis, sludge, and lubricants.
Precision Manufacturing: CNC-machined and laser-calibrated for tight dimensional tolerance, ensuring accurate groove engagement.
Anti-Loosening Design: Special elastic geometry prevents slippage even under high rotational torque or vibration.
Easy Installation: Compatible with standard groove dimensions in screw pump assemblies, allowing quick maintenance and replacement.
Extended Service Life: Designed to withstand thousands of operational hours without fatigue or deformation.
| Parameter | Specification Range | Description |
Material | Stainless Steel (304, 316, 17-4PH), Carbon Steel, Alloy Spring Steel | Selection depends on application environment |
Surface Finish | Polished, Passivated, Zinc-Coated, Black Oxide | Enhances corrosion and wear resistance |
Hardness | 42–55 HRC | Ensures flexibility and strength under cyclic stress |
Diameter Range | 20 mm – 500 mm | Custom diameters available for various screw pump models |
Thickness | 1.5 mm – 5 mm | Depends on groove depth and pump load |
Operating Temperature | -40°C to +250°C | Suitable for a wide range of industrial conditions |
Tensile Strength | ≥ 800 MPa | Prevents deformation during high-load operation |
Installation Type | Internal / External Groove Fit | Based on screw pump design |
Service Life | > 10,000 hours (normal industrial duty) | Verified under standard wear tests |
Each ring can be custom-designed to match the OEM specifications of Screw pump manufacturers. For example, retaining rings for Seepex, Mono, Netzsch, or Allweiler pumps differ slightly in groove depth and thickness tolerance, and the design must be compatible with the pump’s rotor coupling system.
In sludge transfer and sewage processing screw pumps, the retaining ring stabilizes the rotor shaft connection. It ensures smooth torque transfer between the drive end and rotor, maintaining continuous sludge flow and preventing vibration-induced wear.
Chemical dosing and polymer feed pumps require stable mechanical alignment to handle viscous or corrosive liquids. The retaining ring ensures the rotor and drive joint remain secured during variable load cycles, even when exposed to caustic substances.
In crude oil transfer and drilling mud circulation pumps, retaining rings withstand extreme pressure and temperature. Their spring elasticity compensates for thermal expansion, ensuring tight locking and consistent pump efficiency.
While mainly industrial, food-grade retaining rings made from 316 stainless steel are also used in Hygienic Screw Pumps transferring syrups, yeast, and sauces. They are easy to clean and comply with FDA material safety standards.
Slurry pumps and grout transfer systems in mining rely on screw pumps where high torque retention is essential. The wire retaining ring prevents dislocation of rotating components in heavy-duty field applications.
Used in fuel feed pumps for biomass systems and ash slurry conveyance. Retaining rings maintain rotor balance even under abrasive wear conditions.
Clean Groove and Shaft: Ensure all contact surfaces are free from oil, debris, or corrosion before installation.
Check Groove Dimensions: Verify that the groove depth and diameter match the ring specifications.
Expand Carefully: Use retaining ring pliers to expand or compress the ring slightly. Avoid over-stretching to prevent fatigue.
Align with Groove: Slide the ring into position and ensure it fully seats into the groove.
Verify Locking Fit: Rotate the shaft gently to confirm that the ring remains stable without lateral movement.
Regularly inspect retaining rings during pump overhauls for signs of wear, cracks, or distortion.
Replace any ring showing loss of elasticity or corrosion pitting.
Use lubricants or anti-seize compounds only if approved by the pump manufacturer.
Store spare retaining rings in a dry, temperature-controlled environment to prevent oxidation.
Shut down the pump and depressurize the system.
Remove coupling covers and disconnect the drive shaft.
Carefully extract the old retaining ring using the correct pliers.
Clean and inspect the groove before installing a new ring.
Reassemble the pump and conduct a low-speed test run to verify alignment.
| Problem | Possible Cause | Solution |
Ring loosens during operation | Groove worn or wrong dimension | Replace or machine groove to correct spec |
Retaining ring breaks | Overstretching during installation | Use correct pliers and do not exceed elastic limit |
Corrosion on surface | Exposure to chemicals or poor material selection | Use stainless steel 316 or 17-4PH versions |
Rotor vibration | Misalignment or missing retaining ring | Reinstall properly and ensure secure groove fit |
Difficult installation | Incorrect diameter or thickness | Verify specifications before ordering |
Premature wear | Excessive load or temperature | Upgrade to higher tensile material or coated surface |
Proper maintenance and timely replacement of the wire retaining ring significantly extend the life of screw pump assemblies and prevent costly downtime.
Extended Pump Life: Prevents rotor or shaft misalignment.
Reduced Maintenance: Minimizes vibration and wear on bearings.
Reliable Sealing Performance: Keeps mechanical seal position stable.
Consistent Pump Efficiency: Ensures smooth torque transmission.
Low-Cost Protection: A small component that provides large operational benefits.
The Screw Pump Wire Retaining Ring may seem like a small component, but its role in ensuring mechanical integrity, alignment precision, and operational safety cannot be overstated. By securing key rotating parts, it prevents failures, extends service intervals, and ensures the screw pump operates at its designed performance.
For industries that depend on continuous fluid handling and process stability, investing in high-quality wire retaining rings is essential. With custom material options, precise manufacturing, and compatibility with multiple pump brands, these retaining rings deliver unmatched reliability across diverse industrial applications.
