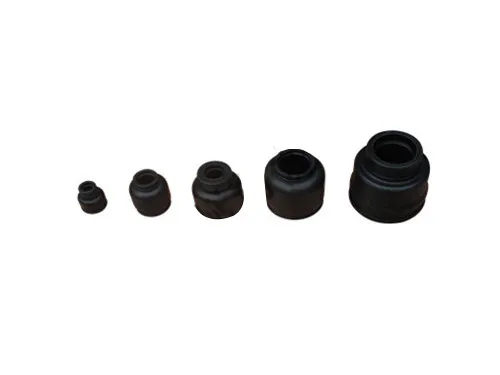

The Screw Pump Sleeve is an essential mechanical part in the structure of a progressive cavity (single screw) pump, serving as both a protective and guiding component for the pump’s rotating elements. Installed around the rotor shaft or within the drive assembly, the sleeve protects critical components such as the rotor, shaft, and seals from direct contact with pumped media, friction, and wear. It also ensures precise alignment, maintains sealing integrity, and contributes to the pump’s overall operational stability.
The primary function of the screw pump sleeve is to reduce frictional wear, enhance corrosion resistance, and improve the lifespan of the pump’s moving parts. In many designs, it acts as a replaceable wear sleeve or shaft protection sleeve, safeguarding the mechanical shaft from erosion caused by abrasive or corrosive fluids. The sleeve can be easily replaced during maintenance, which significantly reduces downtime and operating costs.
Constructed from stainless steel, hardened steel, ceramic-coated alloy, or engineering polymers, the screw pump sleeve provides strong mechanical durability. It is especially critical in heavy-duty industrial screw pumps used for oil transfer, wastewater treatment, chemical processing, and slurry handling.
In short, the screw pump sleeve plays a vital role in extending the pump’s service life and ensuring reliable, efficient fluid transfer under challenging operating conditions.
High Wear Resistance: Designed to withstand frictional forces between the rotor and pumped medium, even with abrasive slurries.
Corrosion Protection: Resistant to chemical attack from acids, alkalis, and solvents; available in 316L stainless steel or coated materials.
Precision Fit: Machined with tight tolerances to ensure accurate shaft alignment and minimal vibration.
Replaceable Design: The sleeve is removable, allowing for easy replacement without dismantling the entire pump body.
Customizable Dimensions: Manufactured according to OEM specifications for various screw pump brands such as Seepex, Netzsch, Mono, and Allweiler.
Extended Service Life: Protects expensive rotating parts and ensures stable long-term performance.
Surface Coating Options: Available in ceramic, PTFE, or tungsten carbide coatings for added durability.
| Parameter | Specification Range | Description |
Material | Stainless Steel 304 / 316L, Hardened Steel, Alloy Steel, Duplex Steel, Ceramic-Coated Alloy | Selectable according to working medium |
Surface Finish | Polished, Sandblasted, Hard Chrome, PTFE, or Ceramic Coated | Improves wear resistance and reduces friction |
Inner Diameter | 25 mm – 400 mm | Matches rotor or shaft dimension |
Outer Diameter | 40 mm – 500 mm | Varies with pump design |
Length | 100 mm – 1000 mm | Customizable to pump model |
Wall Thickness | 3 mm – 25 mm | Based on pressure and torque requirements |
Operating Pressure | Up to 6 MPa | Suitable for medium and high-pressure screw pumps |
Temperature Range | -40°C to +250°C | For both cryogenic and high-temperature operations |
Hardness | 45–70 HRC (depending on material) | Ensures resistance to abrasion |
Concentricity Tolerance | ±0.02 mm | Ensures rotor alignment |
Service Life | > 20,000 hours | Under normal industrial conditions |
Each screw pump sleeve is engineered with precision machining to maintain consistent clearance between rotating parts, preventing overheating or shaft seizure during operation. High-accuracy surface finishing minimizes energy loss and improves overall pump efficiency.
In sludge transfer and sewage systems, screw pumps handle abrasive and viscous materials that can quickly wear down mechanical components. The screw pump sleeve serves as a protective barrier, reducing wear on the shaft and extending service life. Its corrosion-resistant properties also help maintain system reliability under continuous operation.
In oilfields, screw pumps are used for crude oil, drilling mud, and chemical additives. The sleeve ensures the shaft’s protection from abrasion and corrosion while maintaining proper rotor balance under high pressure and variable viscosity conditions. For offshore or corrosive environments, duplex or 316L stainless steel sleeves are preferred.
Chemical industries use screw pumps for transferring acids, alkalis, resins, and polymers. The sleeve prevents corrosive media from damaging the shaft, especially when made from ceramic-coated or PTFE-lined alloys. Its non-reactive surface ensures purity and prevents contamination of sensitive chemical products.
In Sanitary Screw Pumps used for food materials like syrups, chocolate, or yogurt, stainless steel sleeves with smooth polished finishes are used. These sleeves comply with FDA and 3A sanitary standards, ensuring hygienic operation and easy cleaning during maintenance.
Mining operations require pumps that can handle gritty, abrasive slurries. The screw pump sleeve must resist severe wear and erosion. Hardened steel or tungsten carbide-coated sleeves provide superior resistance to mechanical damage and maintain pump performance under extreme conditions.
In power plants, screw pumps are used for handling fuel oil, cooling fluids, and ash slurry. The frame sleeve maintains rotor alignment and shaft stability under high-speed, high-temperature conditions, contributing to overall reliability and efficiency.
Inspect All Components: Ensure that the sleeve, shaft, and pump body are clean, dry, and free from damage.
Apply Lubricant: Use an appropriate assembly lubricant or anti-seize compound on the shaft before mounting the sleeve.
Position the Sleeve: Align the keyways and slide the sleeve onto the shaft smoothly; avoid excessive force or impact.
Secure Fasteners: Tighten retaining rings or set screws according to torque specifications provided by the manufacturer.
Check Concentricity: Rotate the rotor manually to verify smooth motion and proper alignment before starting the pump.
Avoid running the pump dry, as this can cause sleeve overheating and accelerated wear.
Maintain proper lubrication in the pump drive system.
Monitor vibration and noise levels — any deviation may indicate sleeve misalignment or shaft wear.
For high-viscosity fluids, operate the pump within recommended torque limits to prevent sleeve stress.
Regular Inspection: Check sleeve condition during routine maintenance. Look for signs of pitting, scoring, or corrosion.
Cleaning: Clean using suitable solvents or mild detergents to remove buildup. Avoid abrasive tools that could damage the surface.
Lubrication: Maintain adequate lubrication between the sleeve and rotor shaft to minimize friction.
Replacement: Replace the sleeve when wear depth exceeds 10–15% of the original thickness.
Storage: Store spare sleeves in a clean, dry environment to prevent oxidation or contamination.
| Problem | Possible Cause | Solution |
Sleeve wear or scoring | Abrasive particles in fluid | Use ceramic or hardened steel sleeves |
Corrosion | Incompatible material with chemical medium | Upgrade to 316L stainless or PTFE-lined sleeve |
Leakage at sleeve ends | Damaged O-rings or improper installation | Replace seals and re-align sleeve |
Shaft vibration | Misalignment or imbalance | Inspect bearings and sleeve positioning |
Overheating | Insufficient lubrication | Reapply suitable lubricants and verify oil circulation |
Noise or friction | Shaft-to-sleeve contact | Check clearances and ensure correct torque setting |
Enhanced Durability: Extends lifespan of shaft and internal components by reducing direct wear.
Improved Operational Efficiency: Maintains rotor alignment and reduces mechanical energy loss.
Easy Maintenance: Simplifies repairs and minimizes downtime with replaceable design.
Cost-Effective: Protects critical pump parts, reducing the need for expensive replacements.
Versatile Material Options: Available for a wide range of fluids—from chemicals to food-grade applications.
High Precision Manufacturing: Ensures perfect fit and consistent sealing performance.
The Screw Pump Sleeve is a critical precision part that plays an indispensable role in the performance and longevity of progressive cavity screw pumps. By protecting the shaft and internal components from mechanical wear, corrosion, and contamination, it ensures stable and efficient operation across demanding industrial environments.
For industries such as chemical processing, wastewater treatment, oil & gas, and food manufacturing, choosing the right screw pump sleeve material and design directly affects pump reliability and service life.
Partnering with a reputable manufacturer that offers customized materials, precision machining, and quality assurance will help maintain your system’s performance, reduce maintenance downtime, and lower long-term operational costs.
